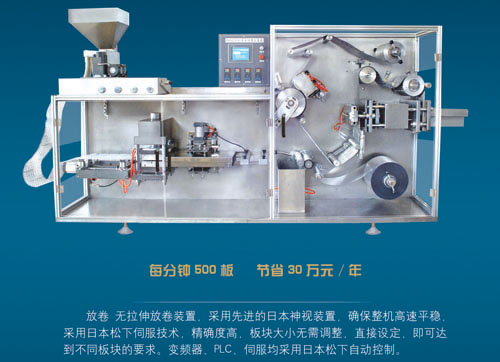

產品簡介

　　外形美觀，全部不銹鋼蒙面，全封閉，符合制藥行業GMP生產要求，質量可靠，運行穩定，可按不同生產規模進行選型。

　　Beauty. all stainless steel masked, with the pharmaceutical industry closed cycle gmp requirements of production and reliable quality, stable, but a different scale of production. a sizing

　　產品特點

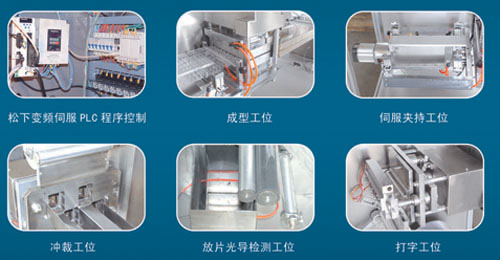

　　1、集光、機電、氣為一體，由人機界面操作，PLC系統控制。

　　2、無級變頻調速、高速范圍40-180次/分（沖切）注根據板型長度決定沖裁次數。

　　3、無中間縱邊，橫邊廢料，年節約耗材30余萬元，板式排列送出，減少管理人員三名。

　　4、采用日本神視光導纖維組合檢測器件而控制片材放出量精度高。

　　5、伺服電機挾持控制，板塊大小無需調整，直接自動設定。

　　6、可與通用上料機，圓盤上料機配套使用。

　　7、板式成型，輥式封合，包裝效率高，外形美觀。

　　8、自來水，循環水冷卻（外接）。

　　Product's Feaures:

　　1、light harvesting, electrical, to one, the man-machine interface, plc system of control.

　　2、frequency translation machinery velocity modulation, high level of 40 to 180 points （die cutting） the board to cut down on the basis for the length will be cut down many times.

　　3、the vertical, horizontal of the waste, save fallen more than 30 million yuan, they sent out, to reduce administrative personnel to three.

　　4、the japanese god optical fiber a combination of the detector and control of high precision. the amount of resources released.

　　5、Servo motor control the size and escorted to the set. direct.

　　6、with material, the general on the supporting material machine.

　　7、in chinese operatic music and roll in sealing, high efficiency, beauty.

　　8、fountain, the circulation of cooling water （ outside ）.

　　主要技術參數：Main Tech-parameters

　　沖裁效率：20-180次/分 cutting efficency:20-180/pm

　　最大成型面積：250x300mm Max firmation of sizes:250x300mm

　　PVC：300x（0.15-0.45）mm pvc:300x(0.15-0.45)mm

　　PTP：300x（0.02-0.03）mm PTP:300x(0.02-.0.03)mm

　　電源及功率：8.5KW Poewr supply and power:8.5KW

　　整機尺寸：3000x940x1500mm Overall Sizes:3000x940x1500mm

　　包裝尺寸：3500x1200x1690mm Packing sizes:3500x1200x1690mm

　　整機重量：1600Kg Overall weight:1600kg
